Rotasoc®

Rotasoc® is a modular and reconfigurable workstation power system that allows compliance with BS 7671.
- A comprehensive range of interchangeable modules.
- Ultrasonically sealed units.
- Fast-fit modular system.

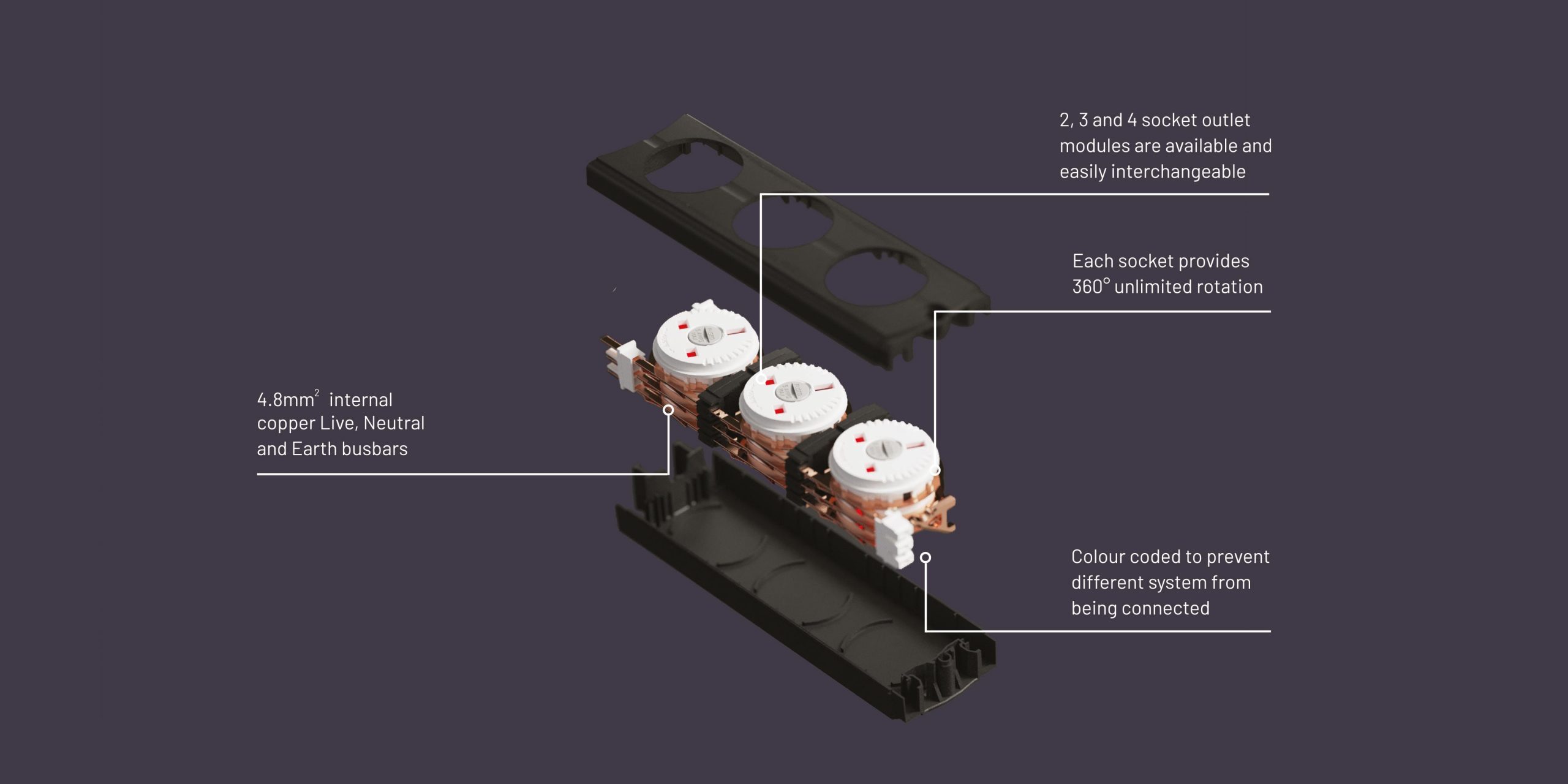

- Socket modules allow unlimited socket rotation due to busbar.
- Lever latching for secure connection between modules.
- Concealed screw fixings.

IMAGES

ENQUIRE NOW

DOWNLOADS

REQUEST A DECLARATION OF CONFORMITY

Linear with 100W Joule charger

Block

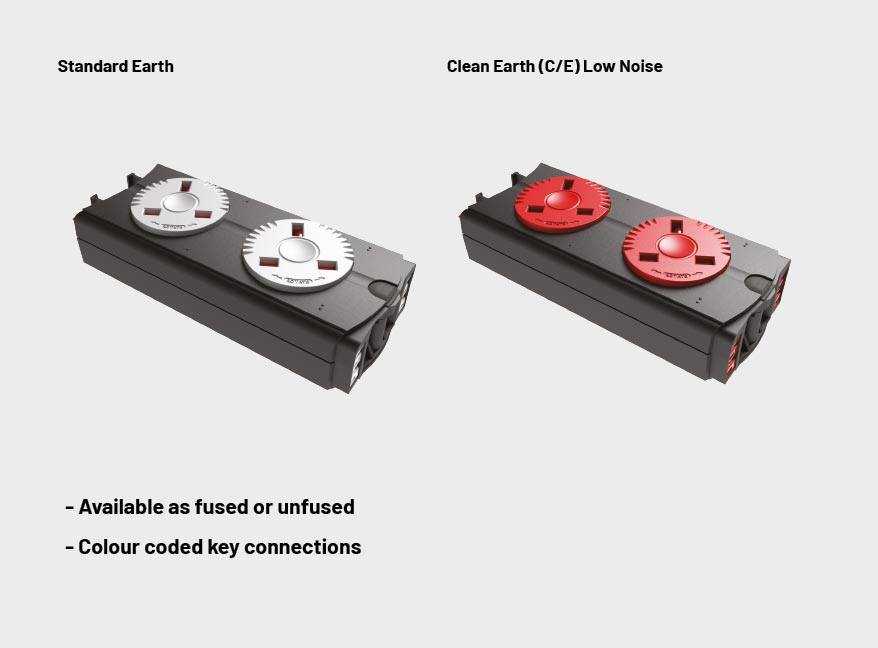

Rotasoc® can cater for Standard and Clean Earth (C/E) low noise systems and provides complete flexibility to your workstation layout.

Available in both 32A and 16A versions Rotasoc® has uniquely designed socket modules with 32A internal busbars that do not require internal wiring, offering unlimited 360 degree socket rotation.

Slide

For more information, and to order Miro, please email Jamie Fitzgerald today.

EMAIL US

Block

Compact, fast charging on desk power module for quick charging of laptops, smart phones and tablets.

A comprehensive range of interchangeable modules

RAB112

RAB005

RAB450

RAB402

RAB502

RAB503

RAB504

RAB710

RABX2241

RAB610

RAB670GST

Block

Our range of technical documents are here to help you specify your next project.

REQUEST A DECLARATION OF CONFORMITY

SPECIFICATIONS

- A comprehensive range of interchangeable modules.
- Ultrasonically sealed units.
- Fast-fit modular system.
- Socket modules allow unlimited socket rotation due to busbar.
- Lever latching for secure connection between modules.
- Concealed screw fixings.

Block

Ordering

UK Code

Description

Contour Plastic Power Module

32 Amp Infeed 2P+E

RAB301

32A 2P+E Rewirable Infeed Module Standard

RAB111

32A Infeed Module c/w 3m 32A Unfused Metal Conduit Tap Off Betatrak PBSX3323H Standard

RAB112

32A Infeed Module c/w 5m 32A Unfused Metal Conduit Tap Off Betatrak PBSX3325H Standard

RAB113

32A Infeed Module c/w 3m 13A Fused Metal Conduit Tap Off Betatrak PBSX3133H Standard

RAB114

32A Infeed Module c/w 5m 13A Fused Metal Conduit Tap Off Betatrak PBSX3135H Standard

RABX2165

32A Infeed 32A Neutrik Standard

16 Amp Infeed 2P+E

RAB201

16A Rewirable Infeed Module Non-Switched/Non-Fused Standard

RAB202

16A Rewirable Infeed Module Neon Indicator Standard

RAB203

16A Rewirable Infeed Module Neon Switch/Non-Fused Standard

RAB003

16A Infeed Module Non-Switched/Non-Fused c/w 3m lead and 13A BS 1363 Plug Standard

RAB005

16A Infeed Module Non-Switched/Non-Fused c/w 5m lead and 13A BS 1363 Plug Standard

RAB007

16A Infeed Module Neon Indicator c/w 3m lead and 13A BS1363 Plug Standard

RAB009

16A Infeed Module Neon Indicator c/w 5m lead and 13A BS1363 Plug Standard

RAB011

16A Infeed Module Neon Switch/Non-Fused c/w 3m lead and 13A BS 1363 Plug Standard

RAB013

16A Infeed Module Neon Switch/Non-Fused c/w 5m lead and 13A BS 1363 Plug Standard

Switching/Protection Modules

RAB401

BS 1362 Fuse Protection Module Standard

RAB402

BS 1362 Fuse and Switch Neon Protection Module Standard

RAB403

BS 1362 Fuse and Neon Protection Module Standard

RAB405

32A 30mA RCD Module Standard

RAB420

16A MCB Type "C" Protection Module Standard

RAB440

32A MCB Type "C" Protection Module Standard

RAB450

16A 30mA Residual Current Operated Circuit Breaker Type "C" Protection Module Standard

RAB460

20A 30mA Residual Current Operated Circuit Breaker Type "C" Protection Module Standard

RAB470

32A 30mA Residual Current Operated Circuit Breaker Type "C" Protection Module Standard

Socket Modules

RAB502

2 Gang Non-fused Socket Module Black Body Grey Sockets Standard

RAB503

3 Gang Non-fused Socket Module Black Body Grey Sockets Standard

RAB504

4 Gang Non-fused Socket Module Black Body Grey Sockets Standard

RAB532

2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets Standard

RAB533

3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets Standard

RAB534

4 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets Standard

32 Amp Interconnects

RAB703

0.3m 32A Male to Female Interconnecting Nylon Conduit Standard

RAB705

0.5m 32A Male to Female Interconnecting Nylon Conduit Standard

RAB710

1m 32A Male to Female Interconnecting Nylon Conduit Standard

RAB720

2m 32A Male to Female Interconnecting Nylon Conduit Standard

RAB730

3m 32A Male to Female Interconnecting Nylon Conduit Standard

RAB740

4m 32A Male to Female Interconnecting Nylon Conduit Standard

RAB750

5m 32A Male to Female Interconnecting Nylon Conduit Standard

16 Amp Interconnects

RAB603

0.3m 16A Male to Female Interconnecting Cable Standard

RAB605

0.5m 16A Male to Female Interconnecting Cable Standard

RAB610

1m 16A Male to Female Interconnecting Cable Standard

RAB620

2m 16A Male to Female Interconnecting Cable Standard

RAB630

3m 16A Male to Female Interconnecting Cable Standard

RAB640

4m 16A Male to Female Interconnecting Cable Standard

RAB650

5m 16A Male to Female Interconnecting Cable Standard

RAB670GST

0.5m 16A Rotasoc Male to GST Female output Other lead lengths available on request

32 Amp Infeed 2P+CE+E

RAC301

32A 2P+CE+E Rewirable Infeed Module Clean

RAC111

32A Infeed Module c/w 3m 32A Unfused Metal Conduit Tap Off Betatrak PBCX4323H Clean

RAC112

32A Infeed Module c/w 5m 32A Unfused Metal Conduit Tap Off Betatrak PBCX4325H Clean

RACX2134

32A Infeed 32A Neutrik Clean

16 Amp Infeed 2P+CE

RAC201

16A Rewirable Infeed Module Non-Switched/Non-Fused Clean

RAC203

16A Rewirable Infeed Module Neon Switch/Non-Fused Clean

RAC003

16A Infeed Module Non-Switched/Non-Fused c/w 3m lead and 13A BS 1363 Plug Clean

RAC005

16A Infeed Module Non-Switched/Non-Fused c/w 5m lead and 13A BS 1363 Plug Clean

RAC007

16A Infeed Module Neon Indicator c/w 3m lead and 13A BS1363 Plug Clean

Switching/Protection Modules

RAC401

BS 1362 Fuse Protection Module Clean

RAC402

BS 1362 Fuse and Switch Neon Protection Module Clean

RAC403

BS 1362 Fuse and Neon Protection Module Clean

RAC405

32A 30mA RCD Module Clean

RAC420

16A MCB Type "C" Protection Module Clean

RAC440

32A MCB Type "C" Protection Module Clean

RAC450

16A 30mA Residual Current Operated Circuit Breaker Type "C" Protection Module Clean

RAC460

20A 30mA Residual Current Operated Circuit Breaker Type "C" Protection Module Clean

RAC470

32A 30mA Residual Current Operated Circuit Breaker Type "C" Protection Module Clean

Socket Modules

RAC502

2 Gang Non-fused Socket Module Black Body Red Sockets Clean

RAC503

3 Gang Non-fused Socket Module Black Body Red Sockets Clean

RAC504

4 Gang Non-fused Socket Module Black Body Red Sockets Clean

RAC532

2 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets Clean

RAC533

3 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets Clean

RAC534

4 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets Clean

RAC552

2 Gang 5A Individually Fused Socket Module Black Body Red Sockets Clean

RAC553

3 Gang 5A Individually Fused Socket Module Black Body Red Sockets Clean

RAC554

4 Gang 5A Individually Fused Socket Module Black Body Red Sockets Clean

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

32 Amp Interconnects

RAC703

0.3m 32A Male to Female Interconnecting Nylon Conduit Clean

RAC705

0.5m 32A Male to Female Interconnecting Nylon Conduit Clean

RAC710

1m 32A Male to Female Interconnecting Nylon Conduit Clean

RAC720

2m 32A Male to Female Interconnecting Nylon Conduit Clean

RAC730

3m 32A Male to Female Interconnecting Nylon Conduit Clean

16 Amp Interconnects

RAC603

0.3m 16A Male to Female Interconnecting Cable Clean

RAC605

0.5m 16A Male to Female Interconnecting Cable Clean

RAC610

1m 16A Male to Female Interconnecting Cable Clean

RAC620

2m 16A Male to Female Interconnecting Cable Clean

RAC630

3m 16A Male to Female Interconnecting Cable Clean

RAC640

4m 16A Male to Female Interconnecting Cable Clean

RAC650

5m 16A Male to Female Interconnecting Cable Clean

RAC670GST

0.5m 16A Rotasoc Male to GST Female output Other lead lengths available on request

32A Infeeds 4P+E+CE

RAD301

A 4P+E+CE Rewirable Infeed Module Dual

RAD111

32A Infeed Module c/w 3m 28A Unfused Metal Conduit Tap Off Betatrak PBDX7283H Dual

RAD112

32A Infeed Module c/w 5m 28A Unfused Metal Conduit Tap Off Betatrak PBDX7285H Dual

16A Infeeds 4P+E+CE

RAD201

16A Rewirable Infeed Module Non-Switched/Non-Fused Dual

RAD202

16A Rewirable Infeed Module 2 x Neon Indicator Dual

RAD203

16A Rewirable Infeed Module 2 x Neon Switch/Non-Fused Dual

RAD003

16A Rewirable Infeed Module Non-Switched/Non-Fused c/w 2 x 3m lead and 13A BS 1363 Plug Dual

RAD005

16A Infeed Module Non-Switched/Non-Fused c/w 2 x 5m lead and 13A BS 1363 Plug Dual

RAD007

16A Infeed Module 2 x Neon Indicator c/w 2 x 3m lead and 13A BS 1363 Plug Dual

RAD009

16A Infeed Module 2 x Neon Indicator c/w 2 x 5m lead and 13A BS 1363 Plug Dual

RAD011

16A Infeed Module 2 x Neon Switch/Non-Fused c/w 2 x 3m lead and 13A BS 1363 Plug Dual

RAD013

16A Infeed Module 2 x Neon Switch/Non-Fused c/w 2 x 5m lead and 13A BS 1363 Plug Dual

Switching/Protection Modules

RAD401

2 x BS 1362 Fuse Protection Module Dual

RAD420

2 x 16A MCB Type "C" Protection Module Dual

RAD440

2 x 32A MCB Type "C" Protection Module Dual

Socket Modules

RAD502

2 Gang Non-fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD503

3 Gang Non-fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD504

4 Gang Non-fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD512

2 Gang Non-fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD513

3 Gang Non-fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD514

4 Gang Non-fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD532

2 Gang 3.15A Individually Fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD533

3 Gang 3.15A Individually Fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD534

4 Gang 3.15A Individually Fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD542

2 Gang 3.15A Individually Fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD543

3 Gang 3.15A Individually Fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD544

4 Gang 3.15A Individually Fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD552

2 Gang 5A Individually Fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD553

3 Gang 5A Individually Fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD554

4 Gang 5A Individually Fused Socket Module - Black Body Grey Sockets Standard/Clean Bypass Dual

RAD562

2 Gang 5A Individually Fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD563

3 Gang 5A Individually Fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

RAD564

4 Gang 5A Individually Fused Socket Module - Black Body Red Sockets Clean/Standard Bypass Dual

32 Amp Interconnects

RAD703

0.3m 32A Male to Female Interconnecting Nylon Conduit Dual

RAD705

0.5m 32A Male to Female Interconnecting Nylon Conduit Dual

RAD710

1m 32A Male to Female Interconnecting Nylon Conduit Dual

RAD720

2m 32A Male to Female Interconnecting Nylon Conduit Dual
