Betatrak® Powertrack Tap-offs

CMD Ltd’s tap-off units are for use with the Betatrak powertrack system and are designed to ensure a safe on-site installation. They are non-interchangeable between the powertrack types, which are Standard Earth, Clean Earth (C/E) low noise, Auxiliary Earth, Dual Circuit (Standard Earth and Clean Earth) or 3-Phase. Tap-off units come in various lengths with fused and unfused options available.

IMAGES

ENQUIRE NOW

DOWNLOADS

CATALOGUE

SPECIFICATION GUIDE

CERTIFICATION

REQUEST A DECLARATION OF CONFORMITY

Linear with 100W Joule charger

Block

Supplied with a slide locking and positive internal latching mechanism preventing accidental disconnection.

Can be added to or removed from the Betatrak powertrack system while the system is live.

Block

Tap-off units come in various lengths with fused and unfused options available

Contour Plastic Power Module

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

Block

Components, Parts & Accessories

Slide

Betatrak® POWERTRACK

Underfloor powertrack solution - exceptionally reliable

BETATRAK® FEED UNIT

All Betatrak circuits start with a feed unit. Select the appropriate feed unit suitable for your system.

MIRO

Award-winning dynamic monitor arm that enables vertical movement of the monitor.

Betatrak® Flexible Corner

Our range of pre-wired flexible corners help if there is a change in direction/ obstruction.

Block

Ordering

UK Code

Description

Contour Plastic Power Module

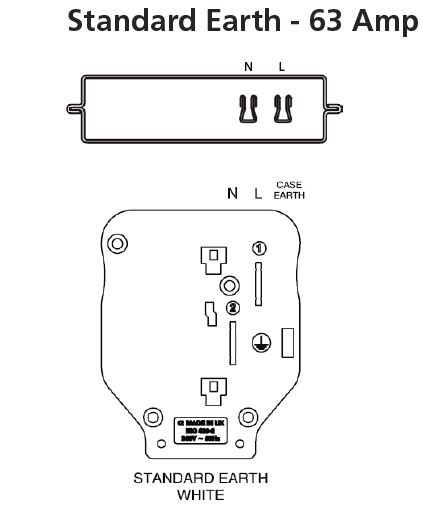

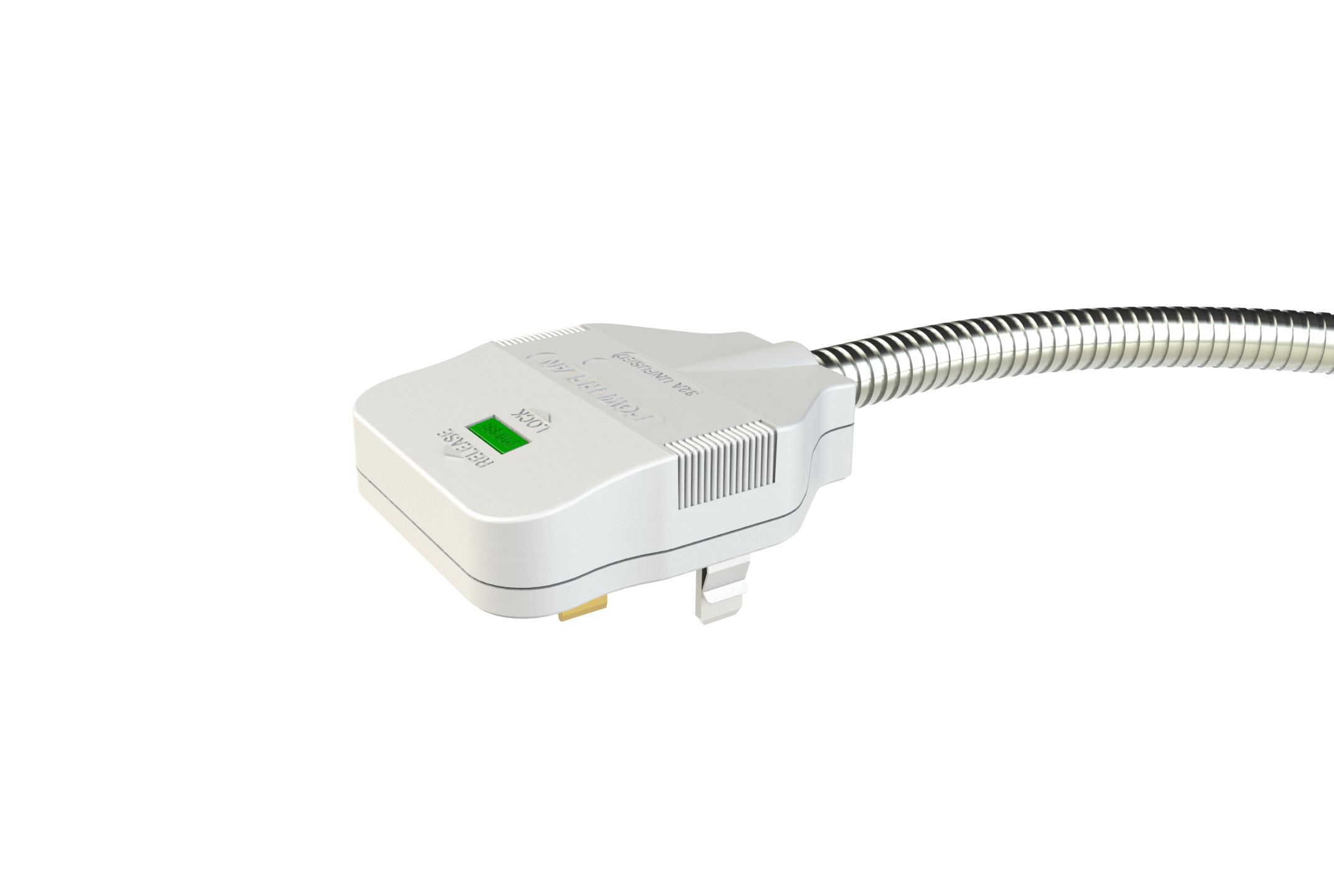

Standard Earth - 63 Amp

PBSX3323H

3 Metre Tap-off 32 Amp Unfused

PBSX3325H

5 Metre Tap-off 32 Amp Unfused

PBSX3133H

3 Metre Tap-off 13 Amp Fused

PBSX3135H

5 Metre Tap-off 13 Amp Fused

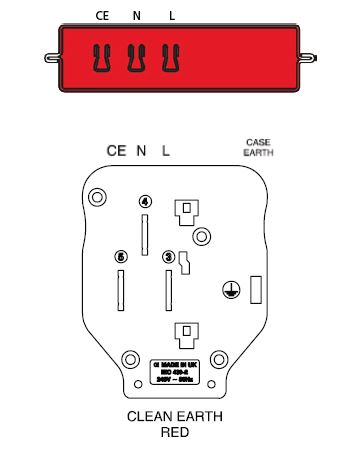

Clean Earth (CE) Low Noise 63 Amp

PBCX4323H

3 Metre Tap-off 32 Amp Unfused

PBCX4325H

5 Metre Tap-off 32 Amp Unfused

PBCX4133H

3 Metre Tap-off 13 Amp Fused

PBCX4135H

Metre Tap-off 13 Amp Fused

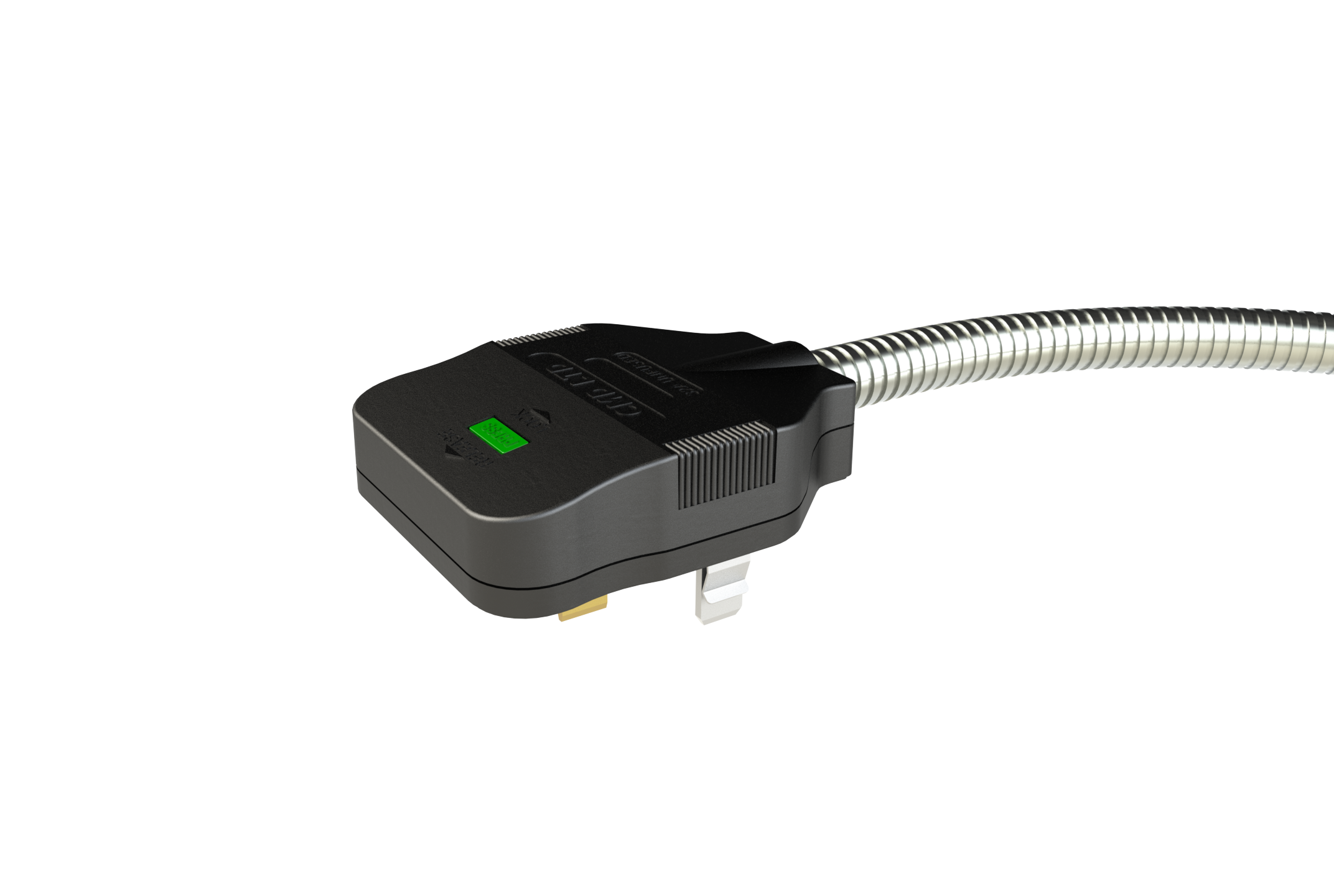

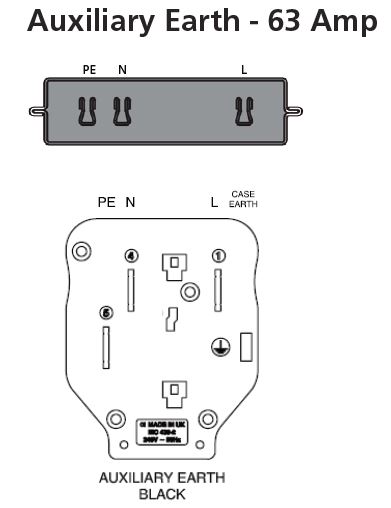

Auxiliary Earth 63 Amp

PBAX3323H

3 Metre Tap-off 32 Amp Unfused

PBAX3325H

5 Metre Tap-off 32 Amp Unfused

PBAX3133H

3 Metre Tap-off 13 Amp Fused

PBAX3135H

5 Metre Tap-off 13 Amp Fused

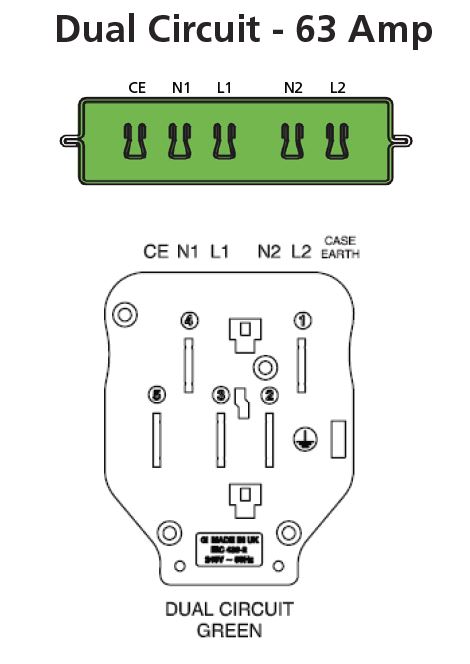

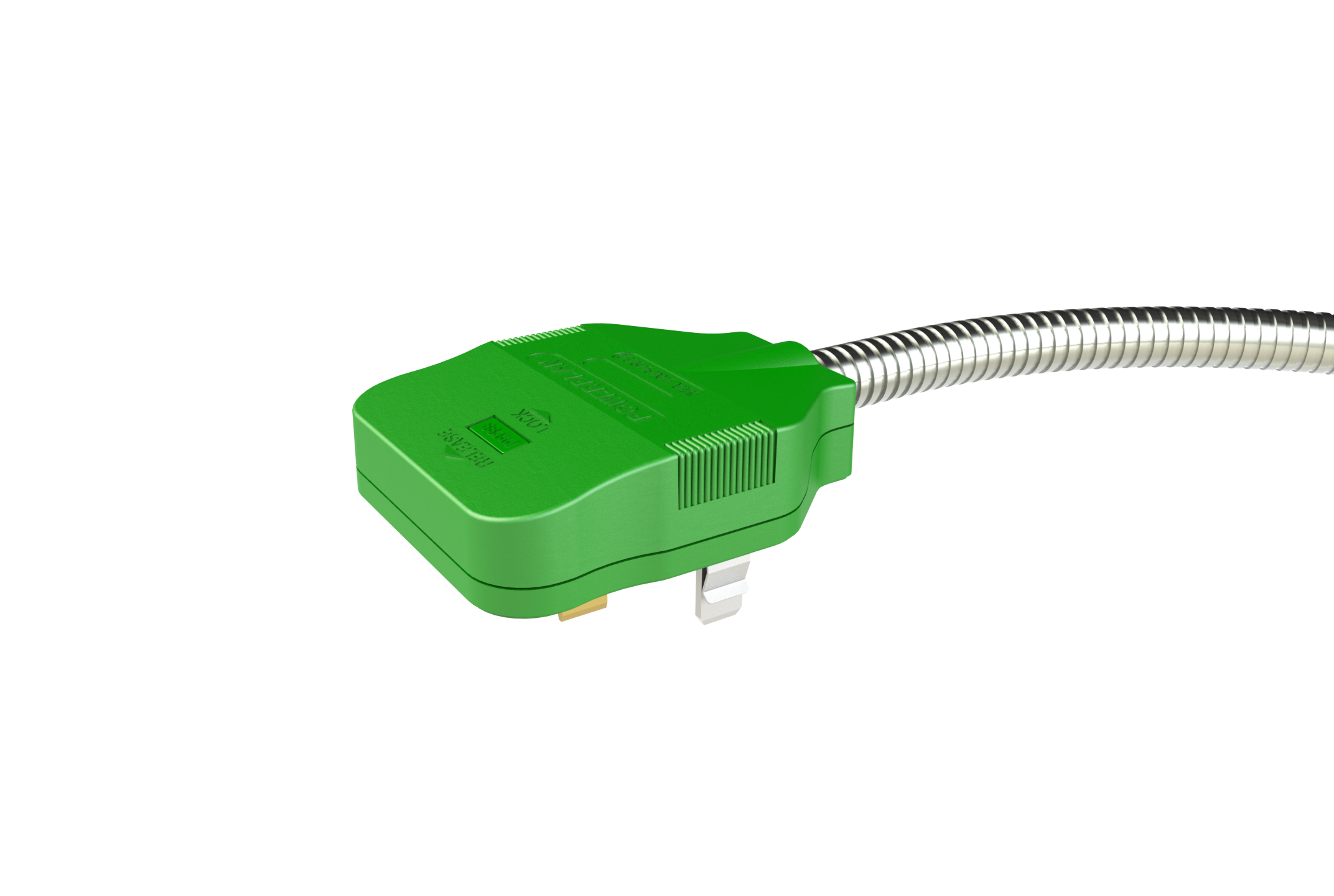

Dual Circuit 63 Amp

PBDX7283H

Metre Tap-off 25 Amp Unfused Dual Circuit

PBDX7285H

5 Metre Tap-off 25 Amp Unfused Dual Circuit

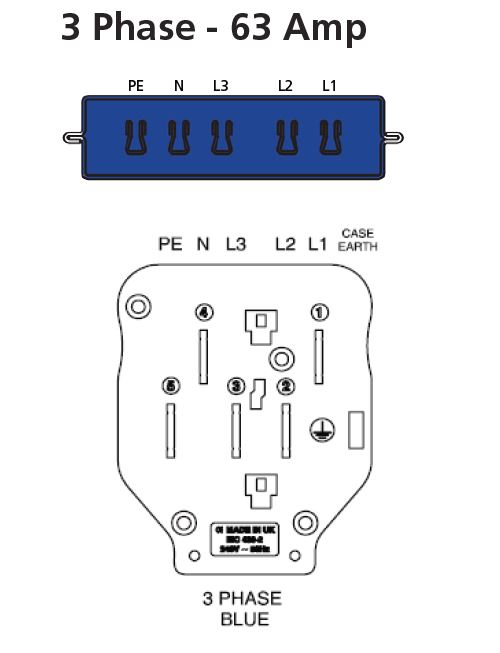

3 Phase 63 Amp

PBTX3323H-1

3 Metre Tap-off 32 Amp Unfused

PBTX3325H-1

5 Metre Tap-off 32 Amp Unfused

PBTX3133H-1

3 Metre Tap-off 13 Amp Fused

PBTX3135H-1

5 Metre Tap-off 13 Amp Fused

Non Standard Tap-off

PPA8284K

5m, 32 Amp unfused, Std Earth Tap-off c/w 32 Amp Neutrik (For Std earth and Std earth/607)

PPA7842K

5m, 32 Amp unfused, Std Auxiliary Earth Tap-off c/w 32 Amp Neutrik (For Std earth and Std earth/607)

PPA8306

5m, 32 Amp unfused, Clean Earth Tap-off c/w 32 Amp Neutrik (For C/E and C/E 607)

PASX3323H

3 Metre Tap-off 32 Amp Unfused

PASX3325H

5 Metre Tap-off 32 Amp Unfused

PACX4323H

3 Metre Tap-off 32 Amp Unfused

PACX4325H

5 Metre Tap-off 32 Amp Unfused

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.
